COG Peelable blue glues for ITO Circuit board of LCM
COG Peelable blue glues for ITO Circuit board of LCM
COG Peelable blue glues for ITO Circuit board of LCM

COG Peelable blue glues for ITO Circuit board of LCM

Model NO.
KL-3600
Price:
USD 69.23-69.23 / tons
Delivery:
FOB
Minimum order quantity:
50 tons
Supply Ability:
10000 tons / Day
Country of Origin:
Hongkong
Quantity:
  • Place of Origin:CN;GUA
  • CAS No.: 14808-60-7
  • Classification:Volatile Solvent Adhesives
  • EINECS No.:Unspecified
  • Brand Name:KLB
  • Type:Hybrid Compound
  • Other Names:Peelable blue glues
  • MF: 14808-60-7
  • Model Number:KL-3600
  • Main Raw Material:elastic resin
  • Usage:Potting adhesive
  • Physical form:Blue liquid
  • Application:protection coating for ITO Circuit board
  • Smell:low odour
  • Viscosity(23℃):360cps
  • Specifical Gravity (23℃) g/cm3:0.80
  • Solid contents %:25
  • Surface dry Min:8
  • Complete Cure Min (1mm Thickness):30
  • Shore Hardness(A):30
  • Elongation %:≥700

                                                                  COG Peelable Blue Glue



KL-3600



peelable blue adhesive.jpg







DECSRIPTION



KL-3600 is professionally designed for electric insulation & moist-proof protection of ITO circuit of LCM,

It’s an one-component, low odor,low viscosity, fast cure and non-corrosive solvent type adhesive sealant

which cures at room temperature. It has good adhesion to ITO glass, easy rework.

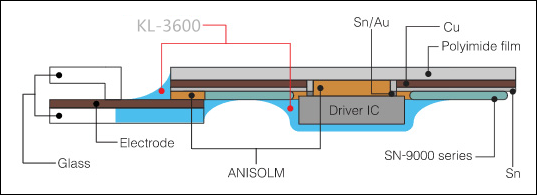

Peelable blue structure.png



circuit board protection glues.png



FEATURES





RoHSHFREACH Compliances;

Low viscosity, good flowability.

Low odor.

Low ion (Cl-/Na+/K+)content.

No corrosion to ITO.

Good adhesion to ITO glass.

Easily repair.

Low water absorption and moisture-permeability.





APPLICATIONS







LCM ITO Driver IC (such as COG) pin protection.









KL-3600 coating tecniques



---------------------------------------------------------------------------





Uncured Properties

Appearance

Blue Liquid

Smell

Low odor

Viscosity(23℃)         cPs

360

Specifical Gravity(23℃)        g/cm3

0.80

Solid Contents            %

25

Curing Properties(23℃,50%RH  Room temperature curing)

Surface dry          Min

8

Complete Cure      Min (1mm Thickness)

30

Cured Properties

Appearance

Blue Elastic Thin Sheet

Shore Hardness(A)

30

Elongation             %

≥700

Water Absorbation*             %

0.25

Moisture permeability (24h)        g/m2

55

Volume resistivity      Ohm.cm

3.2×1014

   Chlorine ion content

(Cl-)  PPM

none

(Na+/K+)PPM



*23℃,24h Water absorbation test.

Note:Above typical data shown .



HANDLING AND SAFETY





Wear eye protection equipments when handling uncured resin as it may irritate eyes. In case of eye contact,

immediately flush eyes well with water and contact a physician.



The volatile solvent is alkane type solvent. Compared with traditional solvents, such as toluene and ketone,

alkane type solvent is more environmental friendly.



Adequate ventilation must be maintained in the work place at all times.



Extended contact with the skin may cause irritation or harm and should be avoided.



KL-3600 releases solvents which are flammable and harmful. Use in well ventilated area. Keep away from fire.



For industrial use only. For more details, please refer to the MSDS of KL-3600.





STORAGE AND SHELF LIFE





Store in a cool and dry place away from direct sunlight. Temperature should be below 30℃, and

relative humidity should be below 80%.

Keep out of the reach of children.

Shelf life: 6 months from the date of manufacture.





PACKAGING





1000ml/bottle(800gram/ bottle)
